Common Issues with Thermal Transfer Ribbons and How to Fix Them

If you're using thermal printers in your business, you're probably quite familiar with thermal transfer ribbons. These ribbons are key for creating durable, premium labels. Yet, even the best printers might sometimes struggle with thermal transfer ribbons.

Experiencing faded prints or wrinkled ribbons? You're not alone—these are common challenges, but thankfully, they're usually straightforward to resolve. In this guide, we’ll break down the basics of thermal ribbons, how they work, and typical issues you might encounter. Plus, we'll provide some handy solutions to help keep your printer running smoothly.

What Are Thermal Transfer Ribbons?

Before we dive into troubleshooting, let’s briefly cover what a thermal transfer ribbon is.

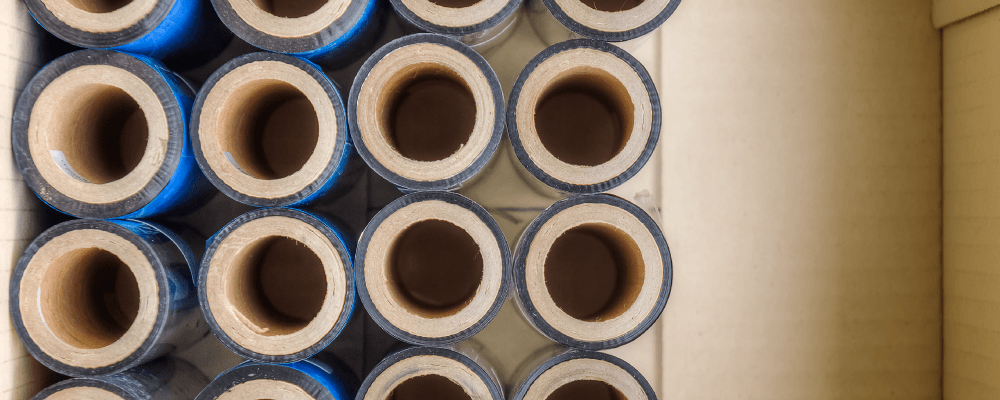

A thermal transfer ribbon is a roll of coated material (usually wax, resin, or a combination of both) that transfers ink to the label when heated by a thermal printhead. The result is a durable, long-lasting print that resists smudging, fading, and harsh environmental conditions. Thermal transfer printing is often used for barcodes, product labels, and shipping tags.

There are three main types of thermal transfer ribbons:

• Wax: The most common type, ideal for general-purpose printing.
• Resin: Used for more durable prints that need to withstand harsh environments.
• Wax-Resin: A blend that provides a balance between durability and cost.

How Do Thermal Transfer Ribbons Work?

Understanding how thermal transfer ribbons work can help you troubleshoot printing problems. When you print using a thermal transfer printer, the printhead heats up specific parts of the ribbon. This heat causes the coating on the ribbon to melt and transfer to the label, creating the image or text.

The key to good prints is having the right amount of heat and pressure to transfer the coating smoothly. If the temperature is too low, the print may appear faded. If it’s too high, the ribbon might wrinkle or the print may become too dark.

Common Issues with Thermal Transfer Ribbons

While thermal transfer ribbons are generally reliable, a few issues can pop up. Here are some of the most common problems and how to fix them.

1. Faded or Light Print

Problem: Your printed labels are too light or faded, making the text or barcode difficult to read.

Cause: This often happens when the printhead isn’t applying enough heat to the ribbon.

Solution:

• Increase the printer's heat setting: Adjust the temperature setting on your thermal printer to increase the heat applied to the ribbon.
• Check the ribbon type: Make sure you’re using the correct type of thermal ribbon for your labels. For instance, a wax ribbon may not provide a strong enough print for certain label materials. In this case, switching to a wax-resin or resin ribbon could help.

2. Wrinkled Ribbon

Problem: The thermal transfer ribbon is wrinkling during the printing process, leading to uneven prints.

Cause: Wrinkling can occur when the ribbon is not aligned properly or the printhead pressure is uneven.

Solution:

• Adjust the ribbon alignment: Ensure the ribbon is properly threaded and evenly loaded in the printer. Wrinkles often occur when the ribbon is too loose.
• Even out the printhead pressure: Check that the printhead is applying equal pressure across the ribbon to avoid uneven tension that can cause wrinkles.

3. Ribbon Breaking or Tearing

Problem: The ribbon keeps breaking or tearing during the print process, interrupting your work.

Cause: This usually happens when the printer’s heat setting is too high, causing the ribbon to become brittle and break.

Solution:

• Lower the heat setting: Reduce the printer's temperature setting to prevent the ribbon from becoming too hot and tearing.
• Check the ribbon type: Make sure you’re using the right ribbon for the job. A resin ribbon, for example, may require less heat than a wax ribbon.

4. Smudging or Streaks on the Labels

Problem: The printed labels have smudges or streaks, making them look messy or unreadable.

Cause: Smudging can happen when the ribbon isn’t transferring properly, or the label material is incompatible with the ribbon.

Solution:

• Use a higher-quality ribbon: If you’re using a basic wax ribbon, consider switching to a wax-resin or resin ribbon for better durability and resistance to smudging.
• Check the label material: Make sure the label material matches the ribbon type. Using the wrong label material with the wrong ribbon can lead to poor adhesion of the ink.

5. Misaligned Printing

Problem: The printed text or image appears off-center or crooked on the label.

Cause: This happens when the label or ribbon isn’t properly aligned in the printer.

Solution:

• Check the label and ribbon alignment: Make sure both the labels and the ribbon are correctly positioned in the printer. Adjust the alignment guides if needed to ensure straight, even printing.

FAQs

What is thermal transfer ribbon?
A thermal transfer ribbon is a roll of coated material used in thermal printers. When heated by the printhead, it transfers ink to a label, creating durable, high-quality prints.

How do thermal transfer ribbons work?
Thermal transfer printing ribbons work by melting a layer of ink onto the label when exposed to the heat from the printer’s printhead. This method produces prints that are resistant to fading, smudging, and environmental wear.

What are the different types of thermal transfer ribbons?
There are three main types of ribbons: wax, wax-resin, and resin. Each has different properties and is suited for different printing needs. Wax is for general-purpose labels, wax-resin offers more durability, and resin is used for the most durable and harsh-environment labels.

Why does my thermal transfer ribbon keep wrinkling?
Ribbon wrinkling usually happens when the ribbon is not properly aligned or the printhead pressure is uneven. Adjusting the alignment and checking the printhead pressure should solve the issue.

Troubleshooting Tips for Thermal Transfer Ribbons

Running into issues with your thermal transfer ribbons? No worries! Most common problems like fading prints or ribbon tearing can be easily fixed by adjusting your printer settings or choosing the right ribbon type. Whether you're working with wax, wax-resin, or resin ribbons, understanding their applications can greatly enhance your printing results.
